24BYJ48 4-Phase Micro Reducer Stepper Motor with Precision Control for Versatile Applications

Name: 24BYJ48 4Phase Micro Reducer Stepper Motor with Precision Control for Versatile Applications
Brand: XM-Motor
Price: 1 USD

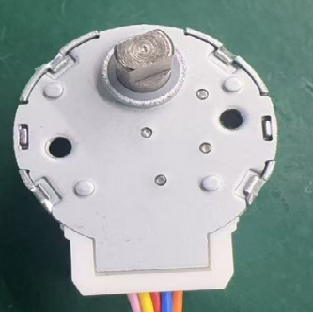

24BYJ48 4-Phase Micro Reducer Stepper Motor with Precision Control for Versatile Applications Manufactures

Brand Name : XM-Motor

Model Number : 24BYJ48

Certification : ISO9001 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : 1~6 USD/PC

Payment Terms : T/T

Supply Ability : 200,000 PCS/month

Delivery Time : 20 to 30 days after receiving deposit

Packaging Details : Carton

Step Angle : （5.625°/64） /（11.25°/64）

Material : Copper wire

Voltage : 12V / 5V DC

Diameter : 24mm

Resistance : 20~300Ω

Wire : 5

Application : Fan,Air conditioner, Camera, Monitor, air conditioners, Intelligent sanitary, refrigerators, automatic door lock etc

Name : 24BYJ48 DC 12V Reduction Stepper Motor Micro Reducer Stepping Motor 4Phase 5Wire

OEM : Logo, wire, holes,parameters,gears etc

Contact Now

24BYJ48 DC 12V Reduction Stepper Motor Micro Reducer Stepping Motor 4Phase 5Wire

Product Introduction:

Model No: 24BYJ48
With same number of poles as the stator, the rotor is composed of permanent magnet material.
Features excellent dynamic performance and high output torque

24BYJ48 Stepper Motor Datasheets:

Model	Voltage(V)	Resistance(Ω)	Step Angle (1-2P) /(2-2P)	Frequency(PPS)	Pull-in Torque(mN.m)	Self-locating Torque(mN.m)	No-loading pull-in frequency(PPS)	No-loading pull-out frequency(PPS)
24BYJ48	5	20	(5.625°/64) /(11.25°/64)	100	≥78.4	≥34.3	≥500	≥900
	12	50	(5.625°/64) /(11.25°/64)	500	≥150	≥49	≥500	≥900
	12	70	(5.625°/64) /(11.25°/64)	500	≥13	≥49	≥500	≥900
	12	200	(5.625°/64) /(11.25°/64)	400	≥78.4	≥34.3	≥500	≥900
	12	70	(5.625°/16) /(11.25°/16)	400	≥19.6	≥19.6	≥500	≥900
	12	70	(5.625°/32) /(11.25°/32)	400	≥49	≥19.6	≥500	≥900
	12	50	(5.625°/37) /(11.25°/37)	500	≥100	≥34.3	≥500	≥900
	24	200	(5.625°/64) /(11.25°/64)	400	≥150	≥34.3	≥500	≥900
	24	300	(5.625°/64) /(11.25°/64)	400	≥80	≥34.3	≥500	≥900

Friendly Reminder:

The above 24BYJ48 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com

24BYJ48 DIMENSIONS: mm

24BYJ48 4-Phase Micro Reducer Stepper Motor with Precision Control for Versatile Applications

24BYJ48 Stepper Motor Torque Curve:

24BYJ48 4-Phase Micro Reducer Stepper Motor with Precision Control for Versatile Applications

24BYJ48 Series Applications:

• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.

24BYJ48 4-Phase Micro Reducer Stepper Motor with Precision Control for Versatile Applications

Workshop :

Custom BYJ Stepper Motors Tailored to Your Specific Needs

Logo printing :as your need.
Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.

24BYJ48 DC 12V Reduction Stepper Motor Micro Reducer Stepping Motor 4Phase 5Wire
